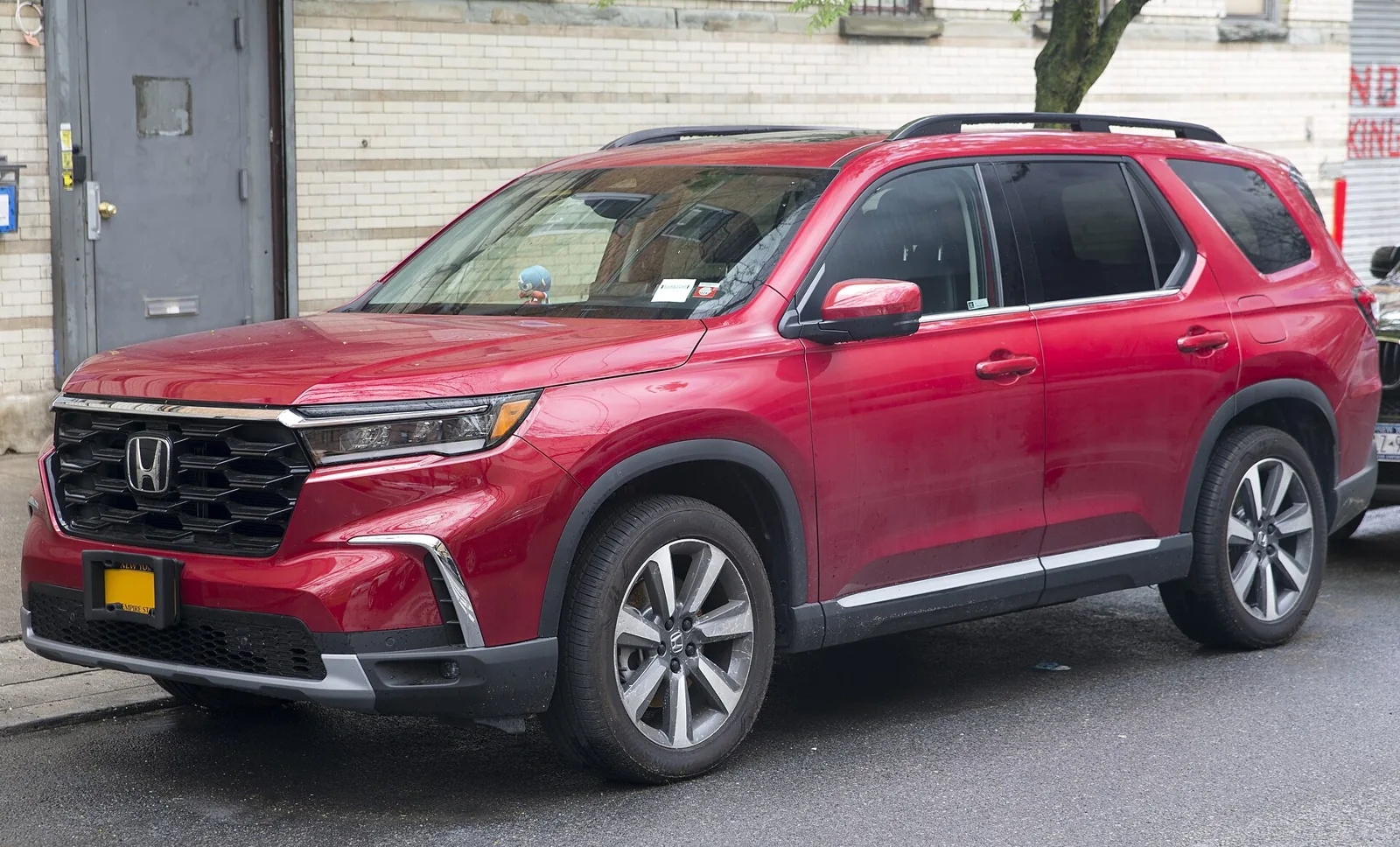

Best Rooftop Cargo Boxes for 2023–2026 Honda Pilot: 7 Picks for Railed and Bare-Roof Trims

For a three-row Pilot, the GrandTour 16 is the box that holds the awkward family gear without fighting the liftgate. Yakima lists it at 79 x 35 x 18 in with 16 cu ft, and that deep 18 in shell swallows camp chairs, a folded stroller and soft duffels that won't fit behind the third row. It opens from both sides, so you load from the curb, takes skis and boards up to 185 cm, and comes with SKS locks, a removable torque-limiting knob and a limited lifetime warranty. Yakima builds it in the USA and lists it at $709.

The fit numbers work well on a Pilot. Its 24–36 in spread covers most raised-rail kits on the Sport, TrailSport, Touring and Elite, and gives a bare-roof clamp kit on an LX or EX-L a good chance of lining up. At 79 in it is shorter than most 16 cu ft boxes, which leaves more room between its tail and the open liftgate. The trade-off is weight: at 51.5 lb, plus the bars, it leaves roughly 100 lb of Honda's 165 lb roof figure for gear. Pack it soft and light, and measure garage clearance, because 18 in is the tallest 16 here.

The Rhino-Rack MasterFit 440L is the box to pick if roof weight is your main worry. Rhino-Rack lists it at 440 L (15.5 cu ft), 76 x 32 x 17 in, and 38.6 lb, with a published 165 lb (75 kg) maximum load, dual-side opening with a key lock, three locking points and a 5-year warranty. That is nearly 13 lb lighter than the GrandTour 16 for only half a cubic foot less space, and on a Pilot those pounds go straight back into your 165 lb roof budget.

The shape suits the Pilot too. At 76 in it sits well forward of the liftgate, and at 32 in wide it leaves a little crossbar length beside it. Rhino-Rack gives a crossbar spacing of 620 to 930 mm, about 24.4 to 36.6 in, which raised-rail kits on the Sport and up can meet easily; on an LX or EX-L clamp kit, check the spread first. The page says it works directly with Rhino-Rack's Vortex and Euro bars and needs a separate RUBK-MF kit for their Heavy Duty bars, so confirm the mounting hardware suits your crossbar shape on the listing. Rhino-Rack's page doesn't show a price, so compare on the listing.

The Yakima CBX 16 trades weight for height. Yakima lists it at 83 x 38 x 15 in with 16 cu ft, 3 in lower than the GrandTour 16, which helps if your Pilot lives in a garage or you use a low parking structure. It opens from both sides, has integrated tie-down points, fits skis and boards up to 185 cm, and its lid handle locks the gear in and the box to the bars. Yakima says it installs in about 10 minutes, builds it in the USA and lists it at $699 with a limited lifetime warranty, though it showed as out of stock on Yakima's store when we checked.

On a Pilot, the catch is weight. At 57 lb, plus the bars, it uses a big share of Honda's 165 lb roof figure and leaves roughly 90 lb for gear. It is also 83 in long and 38 in wide, so it fills the bars and reaches further back toward the liftgate than the GrandTour. Mount it forward and open the liftgate slowly the first time. Its 24–35.5 in spread suits most raised-rail kits; on a bare-roof LX or EX-L, confirm the clamp kit's spread first.

The INNO Wedge Plus is the box for Pilot owners who care most about height. etrailer lists the Wedge Plus at 80 x 33 x 13-3/4 in with 13 cu ft, a 44 lb box weight and a 110 lb cargo capacity. Its Memory Mount clamps go on without tools and fit round, square, aero, elliptical and most factory crossbars, the lid opens from both sides with push-button handles, and the key can't be removed unless the lid is properly closed. INNO backs it with a limited lifetime warranty. etrailer's figures are for the BRM864 version, which the BRM865 in this listing replaces, and etrailer listed it at $888.11.

On a Pilot, 13-3/4 in of box is about 4 in less than the GrandTour 16, which can be the difference at a garage door, especially on a TrailSport. At 33 in wide it leaves a little room on the bars, and at 80 in it is still short enough to mount forward of the liftgate. The trade-off is space: 13 cu ft holds a family's soft bags for a weekend, not a week. Its 110 lb cargo limit sits comfortably inside the Pilot's 165 lb roof figure once the 44 lb box and bars are counted. Confirm the spread against your bars on the listing.

When a Pilot is carrying eight people for a week, the Thule Motion 3 XXL is the box that holds their gear. Thule lists it at 21 cu ft with exterior dimensions of 91.3 x 36.2 x 18.1 in, a 57.2 lb box weight and a 165 lb maximum load. It takes skis up to 215 cm, opens from both sides with one hand, locks with SlideLock and clamps on with PowerClick mounts that click at the right torque. etrailer lists a crossbar spread of 21-13/16 to 36-9/16 in and a limited lifetime warranty. Thule lists the box alone at $1,249.95; this Amazon listing bundles it with a GoPack duffel set, so compare it with the box-only price.

The Pilot's roof figure is the limit here, not the box. Honda quotes 165 lb, and the 57.2 lb box plus bars leaves roughly 90 lb for gear, so fill it with sleeping bags, jackets and soft duffels. Length is the second check. Thule gives a front-clearance figure of more than 54 13/16 in for this box, so measure your Pilot against Thule's hatch-clearance guidance, mount it well forward and open the liftgate slowly the first time.

The SportRack Vista XL is the budget way to add a lot of space to a Pilot. SportRack lists the SR7018 at 63 x 38 x 19 in with 18 cu ft, UV-resistant ABS, tool-free mounting hardware and a lock, for $449.95, and says it fits SportRack racks, square bars, round bars and most factory racks. Short and wide instead of long and narrow, it holds more than any 16 cu ft box here while sitting far forward of the liftgate.

Three things need checking. First, etrailer gives three fixed mounting positions, 25-7/8, 27-7/8 and 29-7/8 in center to center, so your bars must sit on one of them; that is easy with sliding raised-rail bars on a Sport or TrailSport and less certain with a clamp kit on an LX or EX-L. Second, the lid opens at the rear, so you reach up and over the back of the roof to load it, and a step stool helps on a tall SUV. Third, SportRack doesn't publish a box weight, load rating or warranty terms, so confirm them on the listing before planning a load against the 165 lb roof figure. At 19 in tall, measure your garage too.

Every box on this page needs crossbars, and on a railed Pilot these budget bars are the cheapest route. The listing title names the 2023–2026 Pilot Sport, TrailSport, Touring and Elite and states that they are not for the LX and EX-L, which matches Honda's list of trims with standard rails. They are adjustable aluminum bars with anti-theft locks. For a brand-name kit, Honda sells accessory crossbars (08L04-T90-100) and The Rack Shop lists a Yakima TimberLine setup for the railed 2023–2025 Pilot at $503.90 on sale, with a 165 lb rating and a 40 in fairing size.

Two cautions. The title quotes a 300 lb load, but that is a bar claim; Honda's 165 lb figure for the roof rails is the number to plan around, and it covers bars, box and gear. There is also no maker spec sheet for these bars, so confirm the bar weight, the bar length and how far apart they can be set against your box's spread range before ordering. If you have an LX or EX-L, skip these and buy a bare-roof clamp kit listed for the Pilot without rails.
