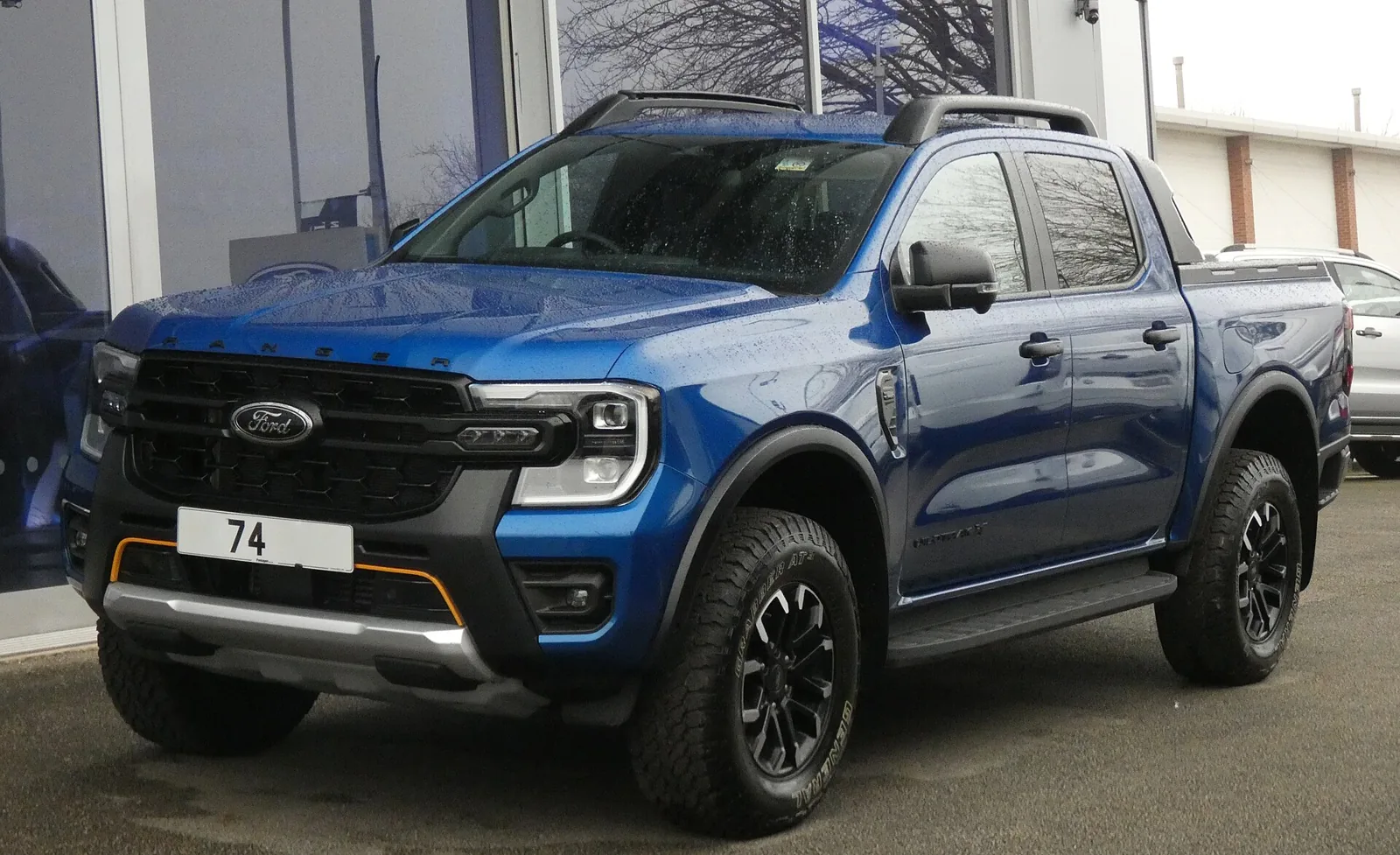

2024–2026 Ford Ranger Upgrades, Ranked: 3 Mods in Order, With Rail-Cap and Model-Year Fit Traps

The fifth-generation Ranger removes the two questions that decide fit on most midsize trucks. MotorWeek's report of the May 2023 launch says the 2024 Ranger is available only as a SuperCrew with a 5 ft bed. Ford's Ranger page, which showed the 2026 model when we read it, lists the SuperCrew and a 59.6 in bed, and Ford's 2024 and 2026 towing guides list no other cab. None of those Ford pages says in so many words that the SuperCrew is the only cab, so the word "only" is MotorWeek's. The site's vehicle data stores the bed as 60 in. Cover makers print it as 5 ft, 5'1" or 60 in.

The bed is not the old bed. The guides cite dealer specifications of about 59.6 in inside length and 48.2 in between the wheel wells, against 61 in and 44.8 in on the 2019–2023 Ranger SuperCrew. For the cab, the floor liner guide found no source that measures the old floor against the new one, only liner makers that split their listings at 2024.

Four things still vary from truck to truck.

The bed rack is last on the buying list and first on the deciding list. On this Ranger a tonneau cover and a bed rack attach along the same bed rails, and two features of those rails decide what can go there.

The rail caps are plastic. Ranger6G owners cited in the bed rack guide report caps breaking under rack weight. The common fix is a spacer kit and under-rail nut plates, such as those from American Adventure Lab, so the rack bolts through to the steel structure. Owners add that trucks built before about mid-September 2024 may also need J-braces.

Ford's cargo management rails are optional. A Ranger6G owner describes them as aluminum T-slot style rails with slots wider than standard aftermarket T-slot hardware, at about $400 MSRP. They can get in the way of racks that clamp to the bed rails. Yakima says tracked beds need its Track Kit 1 or 2, and RealTruck describes Putco's Venture TEC as mounting to the stake pockets or an OEM rail system. Neither page names Ford's rails, so confirm the hardware. For covers, Retrax and Rough Country say theirs are not compatible, and one owner fitted an UnderCover Ultra Flex, UX22033, beside the rails without interference.

The pairings the guides could document:

• Railed cover. The RetraxPRO XR, T-80338, about $2,100, has full-length T-slot rails for crossbars, racks and tents over the closed cover. One Ranger6G owner runs a mid-height truss rack on Retrax XR mounts over it.

• Tower rack with a tonneau kit. Yakima says select covers need its Tonneau Kit 1 under the OutPost HD and OverHaul HD towers. Its pages don't name the Ranger, so run the truck and the cover through Yakima's fit lookup.

• Hard tri-fold that allows a rack. Rough Country says its low-profile cover, about $700, is compatible with bed racks. It names no rack, and it excludes the Raptor.

• Roll-up under a rail system. A Ranger6G thread covers a 10 in rail system from American Adventure Lab built to work with roll-up covers, such as the TruXedo Lo Pro at about $490. Confirm the pair with the rail maker.

The bed rack guide says to check with Putco about covers, and the JOYTUTUS and OBNAUX listings don't mention them. Most folding covers leave nowhere to mount a rack, so settle the pair before paying for either part.

Then fit things in this order. Floor liners go in first. Ford's cargo rails, if the truck is getting them, go on before the cover, as the owner who fitted both advises. The cover goes on before the rack, as the bed rack guide advises. Spacers and nut plates go where the rack feet land.

The 2024 redesign is the first year line. There is a second one inside the generation. A Ranger6G owner who moved a cover from a 2025 to a 2026 found the 2026 bed rail caps thinner, about half an inch by his measurement, with the old cover's rails floating above them. RealTruck posted in a separate thread that makers adjusted their mounts, and another member said only early builds were affected. For the cab, the floor liner guide found no source describing a floor change for 2026.

A title that stops at 2024 or 2025 may simply be older than the newest truck. It may also mean nobody has checked.

There is no trailer hitch guide for the 2024–2026 Ranger on this site, so hitches are not ranked here. This is what Ford's own pages say.

The receiver. Ford's 2026 Ranger towing guide lists a Class IV hitch receiver and a 4-pin and 7-pin connector as Trailer Tow Package equipment, and calls for that package, code 53R, on trailers over 3,500 lb. Ford's 2024 guide words it as "Requires available Trailer Tow Package (53R); standard on Raptor." So the Raptor has the package, and on an XL, XLT or Lariat it is an option. We could not confirm whether any of those three models includes it without the option, so don't go by trim name. Look under the rear bumper. The site's vehicle data lists a Class IV hitch with a 2 in receiver. The Ford pages we read confirm the class for 2026 and don't give the opening size. If a receiver is there, an aftermarket trailer hitch adds nothing.

The rating. The site's vehicle data lists a maximum of 7,500 lb. Ford's Ranger page gives 7,500 lb as the maximum available figure for the XL, XLT and Lariat with the available Trailer Tow Package, and 5,510 lb for the Raptor. Ford's 2024 guide adds that maximum towing varies with cargo, vehicle configuration, accessories and number of passengers. The 2026 guide lists a maximum tongue load of 750 lb, or 550 lb on the Raptor, and says not to exceed a 3,500 lb trailer when towing with the bumper only.

Payload. Ford's Ranger page, as we read it for the 2026 model, gives a maximum available payload of 1,767 lb for the 2.3 L 4x2, 1,763 lb for the 2.3 L 4x4, 1,513 lb for the 2.7 L 4x4 and 1,373 lb for the Raptor. The figure that counts is on your door-jamb label. A rack comes out of it first: Yakima lists the OverHaul HD towers at 59.52 lb and the OutPost HD towers at 44.09 lb before crossbars. Then add the cover, tent, gear, passengers and tongue weight. Keep tent and gear under the rack's moving figure, 600 lb dynamic for the Putco and 500 lb on-road for Yakima's towers. Thule's Xsporter Pro Low is rated at 220 lb, which rules out a tent with people in it.
